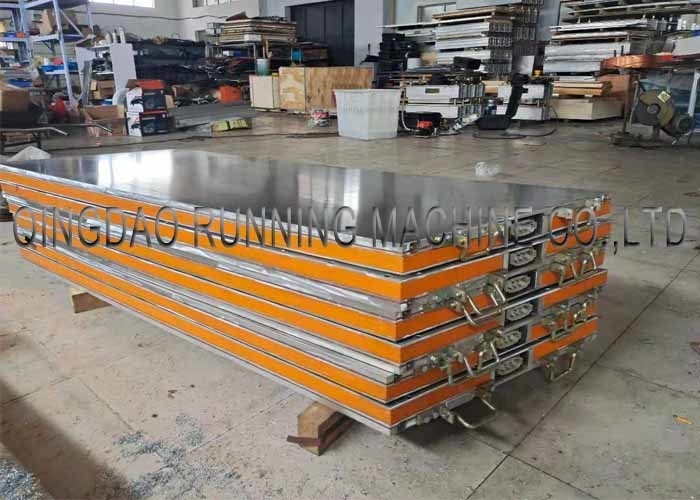

PVC PU Conveyor Belt Splicing Machine With Air Cooling

PVC PU Conveyor Belt Splicing Machine With Air Cooling
PVC PU Conveyor Belt Splicing Machine With Air Cooling

Large Image :  PVC PU Conveyor Belt Splicing Machine With Air Cooling

Product Details:
Place of Origin: CHINA
Brand Name: RUNNING
Certification: CE UL
Model Number: ZLJ-1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 3500 USD / SET
Packaging Details: wooden package
Delivery Time: 7 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100 STES / M

PVC PU Conveyor Belt Splicing Machine With Air Cooling

Description
Type: Conveyor Belt Splicing Machine Usage: PVC PU Conveyor Belt
Main Raw Material: Aluminum Other Names: Conveyor Belt Hot Jointing Machine
Cas No.: Hot Joint Solution Mf: Hot Splice Solution
Cooling: Air Cooling Product Name: Conveyor Belt Repair Adhesive
High Light:

PU Conveyor Belt Splicing Machine

,

PVC Conveyor Belt Splicing Machine

,

Air Cooling belt splicing machine

PVC PU Conveyor Belt Splicing Machine With Air Cooling

Conveyor Belt Splicing Machine is a ecnomic semi-auto finger punching machine using for preparation of Simple finger or finger over finger punching or triple punching, suit for pvc, pu and thermoplastic belt punching.

Steps to select your vulcanizing

The proper model selection for a Sectional vulcanizer depends on determining dimensions C and D (see diagram).



PVC PU Conveyor Belt Splicing Machine With Air Cooling 0









C - The platen length (C) is calculated by adding to the belt manufacturer’s recommended splice length.



  •   8 inches (200mm) for fabric belt
  •   12 inches (3000mm) for steel cord belt



D - The platen width (D) is determined by adding to the belt width.

  •   6 inches (150mm) for fabric belt
  •   8 inches (200mm) for steel cord belt

F - Width of the platen along the belt on bias. To figure this multiply by:

  •   1.07 for 22 degree bias angle
  •   1.05 for 17 degree bias angle

Dimensions C and D represent the outside platen dimensions. Custom sizes, rectangular configurations and multiple platen arrangements are also available upon request.

PVC PU Conveyor Belt Splicing Machine With Air Cooling 1

PVC PU Conveyor Belt Splicing Machine With Air Cooling 2PVC PU Conveyor Belt Splicing Machine With Air Cooling 3



Parameters









Model



Size of heating board: L×W

(mm)

Width for jointed rubber belt

(mm)

Total power

(kw)

Max. weight of component

(kg)

Measurement: L×W×H

(mm)

Total weight

(kg)

Equipped device
Manual pump Electric control box
EPN-650 830×838 650 4 45.5 1142×830×750 445 1 1
EPN-800 830×1028 800 7.2 53.8 1320×830×750 550 1 1
EPN-1000 830×1188 1000 8.4 60.5 1440×830×750 625 1 1
EPN-1200 830×1458 1200 10.8 69.3 1680×830×750 795 1 1
EPN-1400 830×1638 1400 11.4 78.8 1950×830×750 911 1 1
EPN-1600 830×1808 1600 13.2 89.7 2060×830×980 1056 1 1
EPN-1800 830×2078 1800 15 98.3 2320×830×980 1198 1 1
EPN-2000 830×2328 2000 16.8 107.4 2582×830×980 1315 1 1
EPN-2200 830×2508 2200 18 130.5 2842×830×980 1422 1 1
EPN-2400 830×2638 2400 19.5 140 2950×830×980 1500 1 1
EPN-2600 830×2828 2600 21.8 150 3128×830×980 1628 1 1
