Product Details:
|
| Usage: | Conveyor Belt Splicing | Belt Width: | 1400mm |
|---|---|---|---|
| Heating Plate Size: | 1620*830mm | Heating Power: | 18.6kw |
| Pressurizing Method: | Water Pump | Machine Weight: | 1100kg |
| Highlight: | Lightweight conveyor belt splicing equipment,conveyor belt splicing equipment,Lightweight portable belt vulcanizer |
||

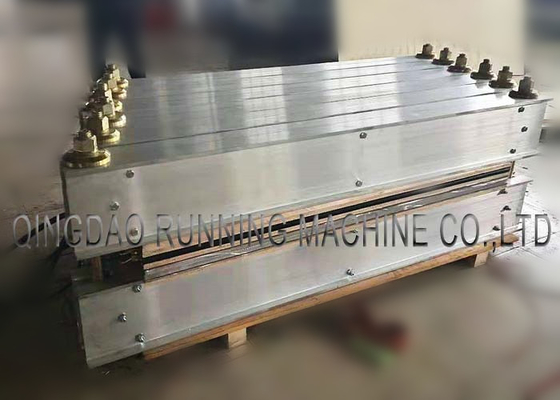

Lightweight Portable Rubber Conveyor Belt Jointing Splicer with Water Fast Cooling
Conveyor belt jointing splicer is used for joining together two pieces of conveyor belt. Usually, this is done to either elongate the original conveyor belt or to repair a torn or damaged conveyor belt. It is mainly applied to industries for splicing and repairing for conveyor belts such as metallurgy, mine, power plant, port, dock, construction material cement, chemical industry , tobacco ,and food automatic line field.
Advantages of vulcanization splicing:
Vulcanization splicing improves the durability of the conveyor belt. The repaired belt can be used for a long time, thereby reducing the risk of repeated failures and equipment downtime.
The longevity of vulcanized splices is longer than that of mechanical splices.
Machine specification of Rubber conveyor belt splicer:
| Model |
Belt Width (mm) |
Power(kw) |
Dimensions (L*W*H mm) |
Weight(kg) | Single Piece Weight(kg) |
| ZLJ-650*830 | 650 | 9.5 | 1370*830*630 | 430 | 45 |
| ZLJ-650*1000 | 10.8 | 1370*1000*630 | 500 | 66 | |
| ZLJ-800*830 | 800 | 11.2 | 1520*830*630 | 535 | 70 |
| ZLJ-800*1000 | 13.5 | 1520*1000*630 | 575 | 79 | |
| ZLJ-1000*830 | 1000 | 14.1 | 1720*830*630 | 595 | 82 |
| ZLJ-1000*1000 | 15.7 | 1720*1000*630 | 620 | 95 | |
| ZLJ-1200*830 | 1200 | 16.5 | 1920*830*710 | 800 | 96 |
| ZLJ-1200*1000 | 17.2 | 1920*1000*710 | 870 | 113 | |
| ZLJ-1400*830 | 1400 | 18.6 | 1930*830*760 | 930 | 107 |
| ZLJ-1400*1000 | 20.7 | 2120*1000*760 | 1180 | 132 | |
| ZLJ-1600*830 | 1600 | 21.5 | 2320*830*800 | 1270 | 120 |
| ZLJ-1600*1000 | 22.3 | 2320*1000*800 | 1460 | 146 | |
| ZLJ-1800*830 | 1800 | 23.3 | 2520*830*850 | 1380 | 137 |
| ZLJ-1800*1000 | 25.6 | 2520*1000*850 | 1650 | 164 | |
| ZLJ-2000*830 | 2000 | 27.2 | 2720*830*950 | 1760 | 154 |
| ZLJ-2000*1000 | 30 | 2720*1000*950 | 1860 | 182 | |
| ZLJ-2200*830 | 2200 | 29.2 | 2920*830*950 | 1860 | 165 |
| ZLJ-2200*1000 | 34.1 | 2920*1000*950 | 1970 | 198 |
Component of rubbe conveyor belt splicer machine:
The Rubber conveyor belt splicer machine consists of Aluminum beam, plywood board, heating platen, water cooling platen, water pressure bag and electricity control cabnient.
Rubber conveyor belt splicing instruction:
For more details of belt splicing & splicer machine, please feel free to contact us!
Shipping package of rubber conveyor belt joint splicer:
