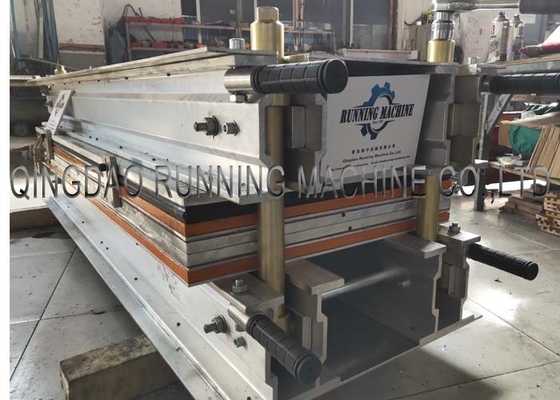

Movable Conveyor Belt Jointing Machine Splicing Press With Fast Cooling System

Description
Application: Rubber Conveyor Belt Vulcanizing Cooling System: Fast Water Cooling System
Heating-up Time: 30 Mins Cooling Time: 5 Minutes
Temperature Adjustment Range: Max. 200ºC Vulcanizing Temperature: 145ºC
Weight: About 1860kg Max. Capacity Pressure: 2.0Mpa
High Light:

Movable Conveyor Belt Jointing Machine

,

Fast Cooling Conveyor Belt Jointing Machine

,

Movable Conveyor Belt Splicing Press

Movable Conveyor Belt Jointing Machine with Fast Cooling System



1- Machine Maximum size: from 300MM-6000MM;
2- .Voltage: 220V 380V 415V 660V 50HZ;
3- Fast Cooling time: 15 minutes (from 145 degrees down to 70 degrees or less);
4- Time for temperature raise (from normal temperature to vulcanizing temperature) no more than 25 minutes;
5- The temperature difference of sulfide surface: ±2°c.
6- Temperature adjustment range: 0~300°c.
7- Vulcanizing pressure: 0~2.5 MPa (details refer to users' specifications and factory markings);
8- Time of heat preservation for vulcanizing could be adjusted according to thickness of the rubber belts;
9- Splicing length of rubber conveyor belt for vulcanizing jointing could be connected together by single or several pieces if necessary;
10- rubber conveyor belt as well as tension in kilogram required for vulcanizing jointing when
ordering products.
11- Users could order spare electric pumps additionally according to requirements.





  • Movable Conveyor Belt Jointing Machine Splicing Press With Fast Cooling System 0
Model Width of rubber belt to be joined-up
(mm)
Total Power(KW) Weight of heaviest part (Kg) Overall dimensions LxWxH(mm) Total weight
(kg)
Control box
ZLJ--1200 1200 16.5 69.3 1680×830×710 900 1
ZLJ--1600 1600 21.1 89.7 2140×830×800 1320 1
ZLJ--1800 1800 23.3 89.7 2300×830×850 1480 1



Note: of Movable Conveyor Belt Jointing Machine with Fast Cooling System

  • Specifications are subject to change without notice;
  • Build-in cooling standard on all units;
  • Total weights include electrical control panel, cable set and set up templates for all models;
  • 200 PSI models include fluid pressure pump and reservoir unit Model HPP20-4(mandatory for operating pressure above 100PSI/7 kg/cm sq);
  • Temperature adjustable between 0-199deg.C;
  • Sectional vulcanizers are built on a 22 degree bias, 16/20 or other degree are optional;
  • Custom sizes, rectangular configurations and multiple platen arrangements available on request.

*********************************************************



When order, pls supply below information, our technician will make a solution for you, or pls choose one model from bottom traditional sizes table

  • Max belt width
  • Heating platen length (or pls supply belt manufacturer’s recommended splice length)
  • What kind of belt, light duty belts or heavy duty belts, belt model No.
  • Working Voltage
  • Pressure requirements (as our experience, normal is 0.8Mpa, for EP belts is 1.2Mpa, for steel cord belts is 1.4Mpa)
  • Degree of heating platen (standard will be 22 degree)



Normal vulcanizer model sheet:

Movable Conveyor Belt Jointing Machine Splicing Press With Fast Cooling System 1



A= Splice Length
B= Bet Width
C=Length of platen along the belt
D= Width of platen
measured square to beltline
E= Bias Ange
F=Width of platen along the belt on bias



Main Componets of Movable Conveyor Belt Jointing Machine with Fast Cooling System



  • Bars are available in various profiles and lengths to provide a custom solution for your needs
  • Bars are specially designed for running machine and manufactured out of quality extruded aluminum
  • Various bolt and nut styles complement each bar type and provide a secure, pressurized splice







 BEAM of Movable Conveyor Belt Jointing Machine with Fast Cooling System

Movable Conveyor Belt Jointing Machine Splicing Press With Fast Cooling System 2





2.

  • Pressure bolts pass through the cross beam profile for a high level of safety

l Tension bolts made of high-strength steel, however, 2 kg less apiece than conventional steel tension bolts.

  • Tension bolt threads protected against damage
  • Tension bolts sealed up and protected against pollution

Movable Conveyor Belt Jointing Machine Splicing Press With Fast Cooling System 3











3. Lightweight aluminum platens use new rapid cooling system within platens.

Movable Conveyor Belt Jointing Machine Splicing Press With Fast Cooling System 4







4. Custom sizes, rectangular configurations and multiple platen arrangements are also available on request.

Movable Conveyor Belt Jointing Machine Splicing Press With Fast Cooling System 5



5. ELECTRONICS CONTROL CABINET

  • Design of required control cabinet depends on number of heating plates
  •
  •  Exact temperature measurement inside of heating plates via double PT 100, digital display of set point and real value temperature
  •
  •  Quick programming of electronic temperature controllers
  •
  • Voltage monitor for protection against over-voltage
  • In case of electronic control failure switch to manual operation mode
  •
  • Digital automatic timer
  •
  • Monitoring of differences between the single heating circuits +/- 2.5 K
  •
  • Optical signal shows end of vulcanizing time
  •
  • Minimum protection class IP 44

Movable Conveyor Belt Jointing Machine Splicing Press With Fast Cooling System 6

6. Pressure bag system, can used for both water and air, one time molding, without metal frame, light weight, testing pressure out of our factory is 2.5MPA (old design pressure bag fixed with metal frame and bolts, heavy weight)

Movable Conveyor Belt Jointing Machine Splicing Press With Fast Cooling System 7





  • Pressure System  of Movable Conveyor Belt Jointing Machine with Fast Cooling System

A. Automatic pressure pump with pressure gauge, allows easy application of pressure up to 200PSI. For steel-cord belting, standard will be auto pressure pump. After use new cooling system in the heating platen, now also use pressure pump for cooling.

B. Cooling pump , when work with air compressor, air pressure, no pressure pump, such cooling pump can used for cooling. (Pls note that, if have any special requirements of the cooling pump working voltage, pls inform us before order, standard voltage is 220V single phase)

C. Manual Pump: Manual water pressure



Movable Conveyor Belt Jointing Machine Splicing Press With Fast Cooling System 8

Usually we provide the packing list as following:

#1 Heating plate with build in water cooling device 2 Pieces
#2 Almex type pressure bag 1 Pieces
#3 Heating insulation plate 3 Pieces
#4 Standard Control Box 1 Sets
#5 Cross Beams as vulcanizer
#6 Ratchet wrench 2 Handles
#7 Primary wire/cable with plugs 10 meters 1 Pieces
#8 Secondary wire/cable with plugs 5 meters 2 Pieces
#9 Electric pump 1 Set
