Durable Combined Rubber Conveyor Belt Vulcanizing Machine 380V/50HZ Customized

Certification
China qingdao running machine co.,ltd certification
China qingdao running machine co.,ltd certification
Customer Reviews
I am site manager of iron mining company in Australia; We used to pay large amount for rent conveyor belt splice tool from local supplier; Mac provide another solvtion for us, they vulcanizer are cheap and good to use, the price is nearly as much as the rent fee for one year, We can save a lots of budget; —— Mr Jack

—— Jack

I'm Online Chat Now

Durable Combined Rubber Conveyor Belt Vulcanizing Machine 380V/50HZ Customized

Durable Combined Rubber Conveyor Belt Vulcanizing Machine 380V/50HZ Customized
Durable Combined Rubber Conveyor Belt Vulcanizing Machine 380V/50HZ Customized Durable Combined Rubber Conveyor Belt Vulcanizing Machine 380V/50HZ Customized Durable Combined Rubber Conveyor Belt Vulcanizing Machine 380V/50HZ Customized Durable Combined Rubber Conveyor Belt Vulcanizing Machine 380V/50HZ Customized

Large Image :  Durable Combined Rubber Conveyor Belt Vulcanizing Machine 380V/50HZ Customized

Product Details:
Place of Origin: China
Brand Name: RUNNING
Certification: CE,SGS
Model Number: ZLJ-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 7999 / SET
Packaging Details: FCL/LCL
Delivery Time: 7days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 50000sets/year

Durable Combined Rubber Conveyor Belt Vulcanizing Machine 380V/50HZ Customized

Description
Condition: New Application: Conveyor Belt Hot Vulcanizing Joint
Material: Aluminum Alloy Voltage: 380V/50HZ,customized
System: Water System Heating: Electrical
Warranty: 24 Months After-sales Service: Commissioning And Training
High Light:

Combined Conveyor Belt Vulcanizing Machine

,

Conveyor Belt Vulcanizing Machine

,

Combined conveyor belt vulcanizer

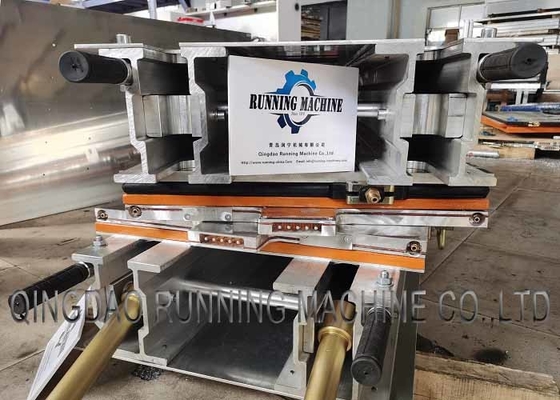

Durable Two Pieces Frame Combined Rubber Conveyor Belt Vulcaniser





Design Features

  1.  Two-piece aluminium frame construction
  2.  Quick assembly and disassembly
  3.  Flexible rubber “Pressure Bag” uniform pressure system
  4.  Sturdy aramid reinforced pressure bag
  5.  Electronic temperature control
  6.  Adjustable temperature from 100 up to 170° C /212 - 338 ° F)
  7.  Surface pressure up to max. 70N/cm² (100 psi)
  8.  Rapid heat up and cool down time
  9.  Heating plates with integrated channels for water cooling
  10.  Multiple units can be used side by side for longer splice lengths



Durable Combined Rubber Conveyor Belt Vulcanizing Machine 380V/50HZ Customized 0



Main Parts & Fittings of Conveyor Belt Vulcaniser



ZLJ conveyor belt vulcanizing machines can be used by one or multiple combinations according to the joint length of the belt.The main configuration of a single vulcanizing machine is as following:

Name

Amout

The whole machine

1 set

Stab a wrench

2 piece

Clip tight device

1 set

Electricity controls box

1 set

A cable

1 root

Two cable

2 root

Hot electric resistance

2 root

SD hand press pump (from choose)

1 set

Pressure pipe

2 root

Cold water system(can choose)

1 set



Durable Combined Rubber Conveyor Belt Vulcanizing Machine 380V/50HZ Customized 1

Durable Combined Rubber Conveyor Belt Vulcanizing Machine 380V/50HZ Customized 2





Product Application

1. Steel Cord Belt Intermediate Rubber is an uncured rubber for hot vulcanized belt splicing.

2. It is designed to use as an inter-core cord rubber replacement material in splicing steel cord conveyor belts or a tie gum in fabric belts.
3. The material is designed to bond to cured intercore rubber and wire cords in all standard grade steel cord conveyor belts, as well as fabric belt cured skim rubber and general bond improvement material for general grade fabric conveyor belts.
The ZLJ sectional has uniform pressure bag and aluminum/steel bolt and high grade aluminum platens and beams with restraining system set as standard. Such belt splicing system designed to be portable and easy to set-up and remove from the site.
We can manufacture to all sizes and pressure up to 200 psi required for different fabric belts and steelcord belts.



Durable Combined Rubber Conveyor Belt Vulcanizing Machine 380V/50HZ Customized 3





Technical Parameters (Reference)




Model

Applied Width(mm)

motor power

Dimension(LxWxH)(mm)

Weight(KG)

ZLJ-800x830

800

11.2

1280x830x630

650

ZLJ-1000x830

1000

14.1

1480x830x630

700

ZLJ-1200x830

1200

16.5

1680x830x710

900

ZLJ-1400x830

1400

18.6

1930x830x760

1100

ZLJ-1600x830

1600

21.1

2140x830x800

1320

ZLJ-1800x830

1800

23.3

2300x830x850

1480

ZLJ-2000x830

2000

25.6

2600x830x950

1860

Durable Combined Rubber Conveyor Belt Vulcanizing Machine 380V/50HZ Customized 4



Easy to set-up and operate



Two Piece Hot Vulcanising Machine , 800 Mm EA Bar Belt Jointing Machine is the world’s most classic heavyweight belt sectional vulcanizing press.



800 mm EA bar two piece used Conveyor Belt Vulcanizing Machine  with  automatic control box 0

800 mm EA bar two piece used Conveyor Belt Vulcanizing Machine  with  automatic control box 1





On Site Splicing Hot Vulcanizing for conveyor belt

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tiger,we will use pe film for packing or pack it according to customers special request.

Our Services

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas


Customer Vistiting



Durable Combined Rubber Conveyor Belt Vulcanizing Machine 380V/50HZ Customized 8

Durable Combined Rubber Conveyor Belt Vulcanizing Machine 380V/50HZ Customized 9



Durable Combined Rubber Conveyor Belt Vulcanizing Machine 380V/50HZ Customized 10
