|Usage:||PU Belts Jointing||Applied Belt Width:||1800mm Or Customized|
|Voltage:||220V 380V Or Customized||Heating Type:||Electricity|
|Cooling Type:||Air Fan Fast Cooling||Highest Heating Temp.:||200℃|
PU portable conveyor belt vulcanizing machine,
1800mm portable conveyor belt vulcanizing machine,
1800mm portable belt vulcanizer

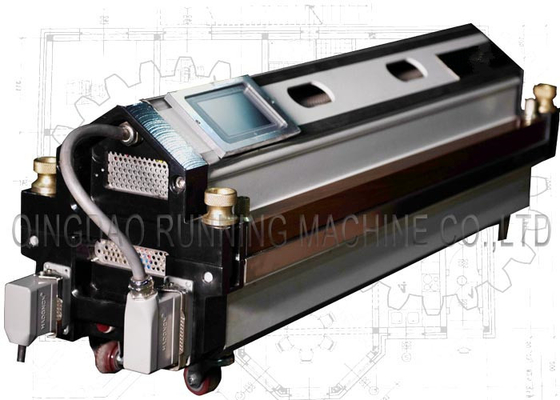

Portable 1800mm PU conveyor Belt Jointing Machine Fast Air Cooling Type
Application & Brife introduction:
This machine is used for jointing PU conveyor belt, also suitable for jointing PVC belts. It is a electrical heating type with fast air cooling system.
The splice press is an all-in-one solution for splicing thermoplastic conveyor belts (e.g. PVC polyurethane).
No external control box, air pump, or water cooling tank are required.
The presses are provided with electric heating and built in air cooling. The jointing process runs fully automated.
Machine specification of PU conveyor belt jointing machine:
presses are available in 5 different sizes:
• 300 mm effective (12")
• 600 mm effective (24")
• 900 mm effective (36")
• 1200 mm effective (48")
• 1500 mm effective (60")
|Effective length||305mm / 12″||610mm / 24″||914mm / 36″||1219 mm / 48″||1524 mm / 60″|
|Effective width||120mm / 4.7″||120mm / 4.7″||120mm / 4.7″||120 mm / 4.7″||120 mm / 4.7″|
|Weight lower part||11.5 kg||18kg||23kg||28.5 kg||32 kg|
|Weight upper part||12kg||13kg||18kg||25.5 kg||30 kg|
|Total weight||21kg||30kg||38kg||54 kg||62 kg|
|Max. pressure||2 Bar / 28 PSI||2 Bar / 28 PSI||2 Bar / 28 PSI||2 Bar / 28 PSI||2 Bar / 28 PSI|
|Max. temperature||200 ℃/390 ℉||200 ℃/ 390 ℉||200 ℃/ 390 ℉||200 ℃/ 390 ℉||200 ℃/ 390 ℉|
|Packaging list(L x W x H)||790x430x420mm||1090x430x420mm||1390x430x420mm||1720*450*430mm||2030*470*410mm|
|Gross weight||50 kg||72 kg||85kg||104 kg||127 kg|
Functions of PU conveyor belt jointing machine:
• Splice pressure is applied by an internal compressor, max. 2 bar (28 psi)
• Heats up to a splice temperature of max. 200°C (392°F)
• Keeps it at the splice temperature (adjustable dwell time)
• Cools down to the cooling temperature (safe temperature to take the belt out)
• For thicker belts a preheat temperature and preheat dwell time can be applied
• The bottom heating can be set lower or higher than the top heating
• The splice surface is 130 mm ; the heated zone is 110 mm.
Introduction of PU conveyor belt jointing machine:
The reading of the display relates to the top temperature of the press. If more or less heat is required at the bottom of the belt, the “bottom heat factor” can be used. Please note that this factor relates to a plus or minus amount of heat (%), not to a specific temperature.
Shipping package of PU conveyor belt jointing machine:
Other related machines / tools for your choice:
