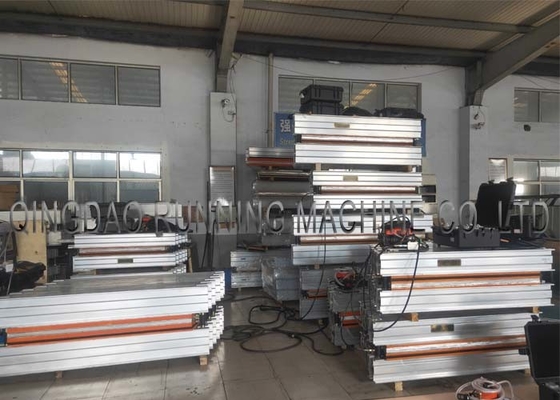

Industrial Rubber Belt Vulcanizing Machine Conveyor Belt Repairing Machine OEM

Industrial Rubber Belt Vulcanizing Machine Conveyor Belt Repairing Machine OEM
Industrial Rubber Belt Vulcanizing Machine Conveyor Belt Repairing Machine OEM
Industrial Rubber Belt Vulcanizing Machine Conveyor Belt Repairing Machine OEM Industrial Rubber Belt Vulcanizing Machine Conveyor Belt Repairing Machine OEM Industrial Rubber Belt Vulcanizing Machine Conveyor Belt Repairing Machine OEM Industrial Rubber Belt Vulcanizing Machine Conveyor Belt Repairing Machine OEM Industrial Rubber Belt Vulcanizing Machine Conveyor Belt Repairing Machine OEM

Large Image :  Industrial Rubber Belt Vulcanizing Machine Conveyor Belt Repairing Machine OEM

Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: RUNNING
Certification: ISO9001 CE
Model Number: ZLJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plywood case (Fumigation free)
Delivery Time: 7 working days
Payment Terms: T/T, L/C
Supply Ability: 50sets/month

Industrial Rubber Belt Vulcanizing Machine Conveyor Belt Repairing Machine OEM

Description
Material: Lightweight Aluminum Alloy HS Code: 84778000
Application: Conveyor Belt Splicing Cooling Method: Water Cooling
Heating Method: Electrical Vulcanizing Temperature: 145ºC
Warranty: 2 Years After-sales Service Provided: Overseas Third-party Support Available
High Light:

Industrial Rubber Belt Vulcanizing Machine

,

OEM Rubber Belt Vulcanizing Machine

,

OEM Conveyor Belt Repairing Machine

Different Models of Industrial Rubber Conveyor Belt Splicing Machine





Each sectional press is constructed with aluminum flexible platens that contour to the conveyor belt surface during splicing. Platens are individually designed and include extruded plank, silicone heating elements, and durable composite insulating packaging. Sturdy electrical connectors and moisture-proof latch enhance press durability



Industrial Rubber Belt Vulcanizing Machine Conveyor Belt Repairing Machine OEM 0



Method and Procedure of Conveyor Belt Splicing Machine



Hot vulcanizing is a method of repair that uses both heat and pressure to join repair materials with compromised sections of the belt. The belt must be cleaned and free of all oily, greasy substances before starting.



Typically, the damaged portion of the belt is removed or trimmed down, and a new section is bonded in its place using an adhesive like glue or cement. Often, technicians will overuse the adhesive, subscribing to an “if a little is good, then a lot is better” approach, but that isn’t necessarily true. The belt is then cured to bond the materials.



The hot vulcanizing method is ideal for cuts or tears, holes or breakdowns between steel cords and fabric. It can be executed in dusty environments and is suitable for all types of belts with varying widths and thickness.





Industrial Rubber Belt Vulcanizing Machine Conveyor Belt Repairing Machine OEM 1



Machine specification of Conveyor Belt Splicing Tools:



Model Applied Width(mm) Motor power Dimension(LxWxH)(mm) Weight(KG)
ZLJ-800x830 800 11.2 1280x830x630 650
ZLJ-1000x830 1000 14.1 1480x830x630 700
ZLJ-1200x830 1200 16.5 1680x830x710 900
ZLJ-1400x830 1400 18.6 1930x830x760 1100
ZLJ-1600x830 1600 21.1 2140x830x800 1320
ZLJ-1800x830 1800 23.3 2300x830x850 1480
ZLJ-2000x830 2000 25.6 2600x830x950 1860



Industrial Rubber Belt Vulcanizing Machine Conveyor Belt Repairing Machine OEM 2





Technical Parameters:


* Vulcanizing temperature: 145ºC (adjustable 0~200ºC)
* Temperature-rising time (from normal temp to vulcanizing temp):≤50 mins(around 25~30 mins normally)
* Improved cooling system: using pressure pump for cooling: only 5mins (cooling from 145 to 75 degrees)
* Belt width: from 650mm to 3000mm 200PSI Almex alike Uniform Pressure Bag for Conveyor Belt Press
* Degree of the heating platen:22 °/17 °/ 20 ° (rectangle and other degree is optional)
* Waterbag/ air pressure Press for 100PSI, 200PSI etc.
* Surface pressure for textile and steel cord belts, Up to 1.8Mpa.
* 100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting
* 200 p.s.i. (14 kg/cm sq.) units suitable for splicing steel cord conveyor belting
* Customization/OEM: Different heating platen size and combination



Packing list of Conveyor Belt Splicing Tools:



Name Amount
Host machine 1 set
Ratchet wrench 2 piece
Clamping device 1 set
Electric control box 1 set
Power cable 1 root
Control cable 2 root
Thermal resistance 2 pieces
QL electric water pump 1 set
SD Hand pressure pump (Optional) 1 set
Pressure pipe 2 root
Water cooling system (Optional) 1 set



When order, pls supply below information, our technician will make a solution for you, or pls choose one model from bottom traditional sizes table

  • Max belt width
  • Heating platen length (or pls supply belt manufacturer’s recommended splice length)
  • What kind of belt, light duty belts or heavy duty belts, belt model No.
  • Working Voltage
  • Pressure requirements (as our experience, normal is 0.8Mpa, for EP belts is 1.2Mpa, for steel cord belts is 1.4Mpa)
  • Degree of heating platen (standard will be 22 degree)



Normal vulcanizer model sheet:
2022 Mining Conveyor Belt Welding Machine Hot Jointing Conveyor Belt Splicing Machine 0

A= Splice Length
B= Bet Width
C=Length of platen along the belt
D= Width of platen
measured square to beltline
E= Bias Ange
F=Width of platen along the belt on bias



Package of Conveyor Belt Splicing Tools:



The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tiger,we will use pe film for packing or pack it according to customers special request.



On Site Splicing Hot Vulcanizing for conveyor belt

Industrial Rubber Belt Vulcanizing Machine Conveyor Belt Repairing Machine OEM 5
