Fast Cooling System Conveyor Belt Welder 1200mm Steel Cord Belt Joint Machine

Certification
China qingdao running machine co.,ltd certification
China qingdao running machine co.,ltd certification
Customer Reviews
I am site manager of iron mining company in Australia; We used to pay large amount for rent conveyor belt splice tool from local supplier; Mac provide another solvtion for us, they vulcanizer are cheap and good to use, the price is nearly as much as the rent fee for one year, We can save a lots of budget; —— Mr Jack

—— Jack

I'm Online Chat Now

Fast Cooling System Conveyor Belt Welder 1200mm Steel Cord Belt Joint Machine

Fast Cooling System Conveyor Belt Welder 1200mm Steel Cord Belt Joint Machine
Fast Cooling System Conveyor Belt Welder 1200mm Steel Cord Belt Joint Machine Fast Cooling System Conveyor Belt Welder 1200mm Steel Cord Belt Joint Machine Fast Cooling System Conveyor Belt Welder 1200mm Steel Cord Belt Joint Machine Fast Cooling System Conveyor Belt Welder 1200mm Steel Cord Belt Joint Machine Fast Cooling System Conveyor Belt Welder 1200mm Steel Cord Belt Joint Machine Fast Cooling System Conveyor Belt Welder 1200mm Steel Cord Belt Joint Machine

Large Image :  Fast Cooling System Conveyor Belt Welder 1200mm Steel Cord Belt Joint Machine

Product Details:
Place of Origin: QINGDAO CHINA
Brand Name: RUNNING
Certification: ISO9001 CE
Model Number: ZLJ/LBD-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $6,000~$7,000/set
Packaging Details: Plywood case (Fumigation free)
Delivery Time: 7 working days
Payment Terms: T/T, L/C
Supply Ability: 50sets/month

Fast Cooling System Conveyor Belt Welder 1200mm Steel Cord Belt Joint Machine

Description
Application: Splicing Conveyor Belt Belt Width: 1200mm Or Customized
Heating Plate Size: 1420*830mm Heating Method: Electricity
Platen Shape: Rectangle Or Rhombus Voltage: 380V 660V Etc.
High Light:

Fast Cooling Conveyor Belt Welder

,

1200mm Conveyor Belt Welder

,

1200mm Steel Cord Belt Joint Machine

1200mm Steel Cord Conveyor Belt Splicing Machine with Water Fast Cooling System



Definition of conveyor belt splicing:



Conveyor belt splicing is the process of joining together two pieces of conveyor belt. Usually, this is done to either elongate the original conveyer belt or to repair a torn or damaged conveyor belt. Because there are so many industries in which conveyor systems are employed, there are many types of conveyor belts and components. In order to correctly splice a belt, the type of belt, speed of conveyor belt system, materials traveling on the belt and conveyor belt environment must be taken into account.



Fast Cooling System Conveyor Belt Welder 1200mm Steel Cord Belt Joint Machine 0



On conveyor belting a vulcanized splicing is formed by stepping the covers and plies of the two ends of plied belting, so that the two halves form an interlocking link when brought together.



1. On steel cord belting, the wire ropes forming the steel cords have to be exposed by removing the covers and surrounding rubber.

2. The ropes are then cut to specific lengths and are meticulously overlapped to specified patterns.

3. Once the ropes have been placed in position, a filler compound is added and the covers are positioned.

4. The prepared splice area is then subjected to the vulcanizing press.



Specifications of Conveyor Belt Splicing Machine:



Model Applied Width(mm) Motor power Dimension(LxWxH)(mm) Weight(KG)
ZLJ-800x830 800 11.2 1280x830x630 650
ZLJ-1000x830 1000 14.1 1480x830x630 700
ZLJ-1200x830 1200 16.5 1680x830x710 900
ZLJ-1400x830 1400 18.6 1930x830x760 1100
ZLJ-1600x830 1600 21.1 2140x830x800 1320
ZLJ-1800x830 1800 23.3 2300x830x850 1480
ZLJ-2000x830 2000 25.6 2600x830x950 1860

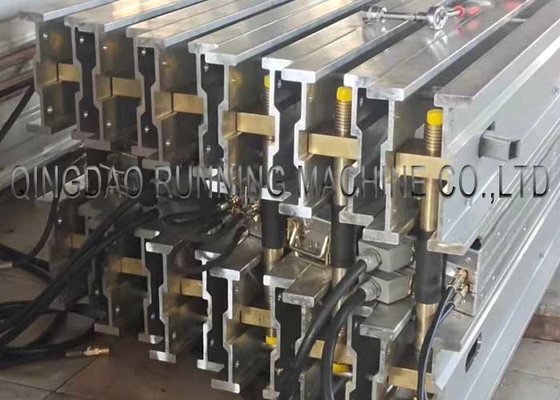

Fast Cooling System Conveyor Belt Welder 1200mm Steel Cord Belt Joint Machine 1

Fast Cooling System Conveyor Belt Welder 1200mm Steel Cord Belt Joint Machine 2
