Water cooled conveyor belt joint /splice/repair vulcanizing press with frame type for sale

Good quality Conveyor Belt Joint Machine for sales
Good quality Conveyor Belt Joint Machine for sales
I'm Online Chat Now

Water cooled conveyor belt joint /splice/repair vulcanizing press with frame type for sale

China Water cooled conveyor belt joint /splice/repair vulcanizing press with frame type for sale supplier
Water cooled conveyor belt joint /splice/repair vulcanizing press with frame type for sale supplier Water cooled conveyor belt joint /splice/repair vulcanizing press with frame type for sale supplier Water cooled conveyor belt joint /splice/repair vulcanizing press with frame type for sale supplier Water cooled conveyor belt joint /splice/repair vulcanizing press with frame type for sale supplier Water cooled conveyor belt joint /splice/repair vulcanizing press with frame type for sale supplier Water cooled conveyor belt joint /splice/repair vulcanizing press with frame type for sale supplier Water cooled conveyor belt joint /splice/repair vulcanizing press with frame type for sale supplier

Large Image :  Water cooled conveyor belt joint /splice/repair vulcanizing press with frame type for sale

Product Details:

Place of Origin: CHINA
Brand Name: ANTAI
Certification: CE
Model Number: SVP 1400 1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 4500
Packaging Details: STANDARD EXPORT PACKAGE
Delivery Time: 14 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 50 PCS/MONTH
Contact Now
Detailed Product Description
Name: Conveyor Belt Jointing Vulcanizing Press Product Name: Rubber Conveyor Belt Jointing Tools Kit Vulcanizing Press Machine
Usage: Conveyor Belt Joint/connection Power: 2.8KW
Cooling Time: About 15 Mins Advantage: Machine Give Uniform Heating Temperature
Max Temperature: 200℃

Water cooled conveyor belt joint /splice/repair vulcanizing press with frame type for sale



The heating layer is fitted with internationally advanced direct-flow water circulation cooling device.It needs only 5 minutes

specifications:
1.Voltage:according to your actual conditions;
2.Vulcanizing temperature:Can be arbitrarily adjusted within 0~200°C
3.Temperature-rising time:not exceeding 50 min (from normal temperature to vulcanizing temperature)
4.Vulcanizing pressure:1.8Mpa
5.Keeping time of vulcanizing temperature can be adjusted according to the thickness of the rubber belts
6.Length of the joint of the vulcanized rubber conveyer belts can be arbirtarily joined-u with single set of multiple sets of vulcanizing machine as required
7.When ordering please clarify the model and specification of the products,and specify the width the tensile strength and the required vulcanizing joining-up pressure in Kg of the rubber conveyer belts
8.Electric pump is available,Users can separately order it as required

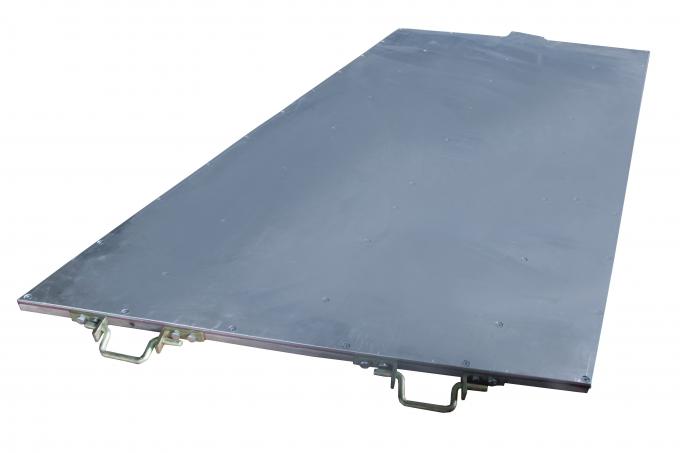

The heating layer is fitted with internationally advanced direct-flow water circulation cooling device.

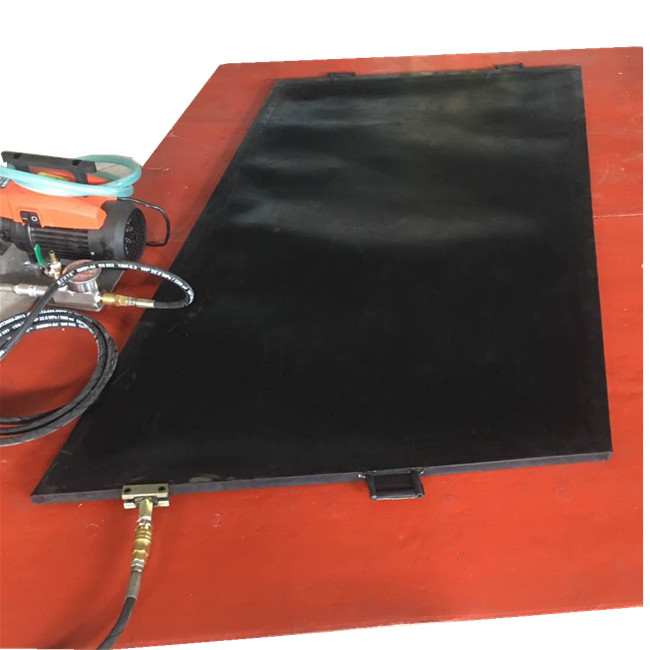

Water pressing bag can be pressurized by water or air.


2.Technical parameters:

Model
Size of heating plate LxW(mm)
Width of rubber belt to be joined-up(mm)
Total Power(KW)
Weight of heaviest part(Kg)
Overall dimensions LxWxH(mm)
Total weight(kg)
Completed equipment
Hand pump

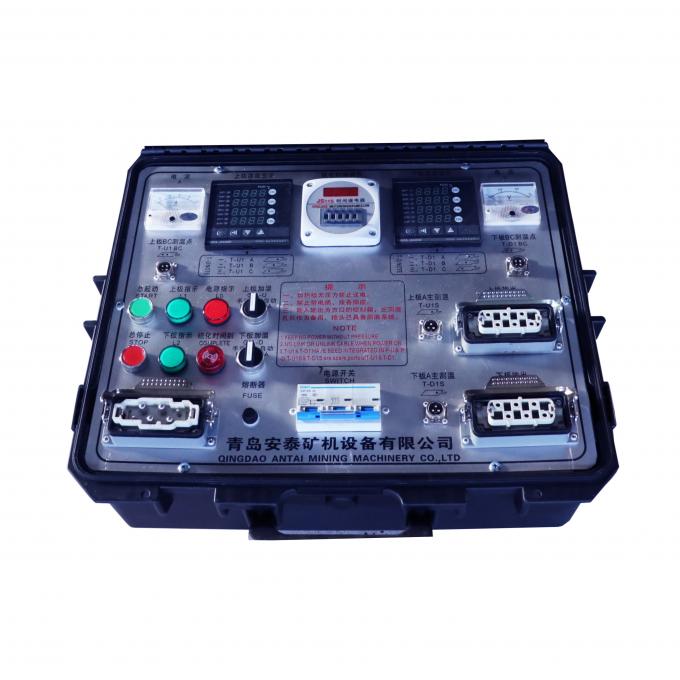

Control box
DRJL-650
(720)830× 838
650
4
45.5
1142×830×750
445
1
1
DRJL-800
(930)830× 1028
800
7.2
53.8
1320×830×750
550
1
1
DRJL-1000
(1120)830× 1188
1000
8.4
60.5
1440×830×750
625
1
1
DRJL-1200
(1360)830× 1458
1200
10.8
69.3
1680×830×750
795
1
1
DRJL-1400
830×1638
1400
11.4
78.8
1950×830×750
911
1
1
DRJL-1600
830×7808
1600
13.2
89.7
2060×830×980
1056
1
1
DRJL-1800
830×2078
1800
15
98.3
2320×830×980
1198
1
1
DRJL-2000
830×2328
2000
16.8
107.4
2582×830×980
1315
1
1
DRJL-2200
830×2508
2200
18
130.5
2842×830×980
1422
1
1





Water cooled conveyor belt joint /splice/repair vulcanizing press with frame type for saleWater cooled conveyor belt joint /splice/repair vulcanizing press with frame type for saleWater cooled conveyor belt joint /splice/repair vulcanizing press with frame type for saleWater cooled conveyor belt joint /splice/repair vulcanizing press with frame type for sale
