|Name:||Conveyor Belt Splicing Machine||Transport Package:||Wooden Box|
|Working Pressure:||0~2MPa||Belt Vulcanizing Temperature:||145ºC|
|Heating Time:||Less Than 25 Minutes||Curing Time Set Adjustable Range:||0-99 Minutes|
|After-Sales Service System:||Video Technical Support||Warranty:||24 Months|
Simple Conveyor Belt Splicing Machine,
Edge Repair Conveyor Belt Splicing Machine,
Edge Repair conveyor belt jointing machine

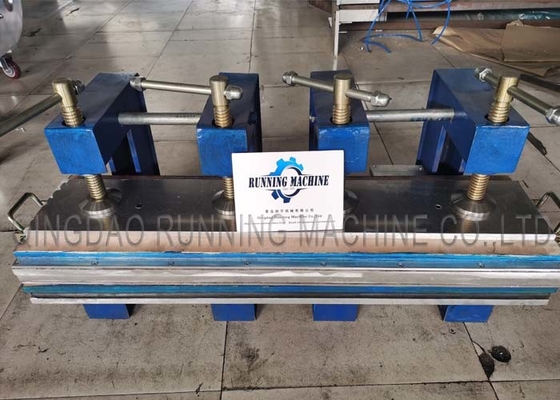

Simple Structure Conveyor Belt Splicing Machine For Edge Repair
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
Technical Parameters (Reference)
Special requirements: Voltage, Pressure, Temperature, Heating platen dimension etc. we can make special for you, if you have any requirements.
The frame is made of high-strength aluminum alloy, it's small size, portable,safe and reliable.
1.Rapid heating: from 20 ℃ to 145 ℃ only takes 20-25 minutes;
2.Uniform temperature: heating plate maximum temperature and minimum temperature difference does not exceed 3 ℃;
3. Rapid cooling: the heating plate from 145 ℃ to 65℃ cooling only takes 15-20 minutes;
4.Durable High-strength durable aluminum alloy allows maximum pressure 2.0 Mpa
1.Fill glue inthe damaged areas that need to be repaired(see the adhesive part in the vulcanization process of the belt joints, or the demonstration by our staff when the equipment is being tested);
2.Put the bottom plate, water pressure plate and lower heating plate under the damaged areasof the belt according to the structural diagram.
3.Put the upper heating plate,Insulation board on the damaged areasof the belt.Align the top and bottom plates.
4. Lockedequidistantlythen tighten the bolts.
5.Get the first power wire well connected to electric control box. Connect the second wire with electric control box and the upper and down plates.Note that it corresponds to the signon the electric control box.
6.Connect the end of the high pressure pipe with inlet opening of water pressure plate. And connect another end of the high-pressure pipe with water output hole of water pump.Switch on, add pressure upon vulcanizing machine.
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tiger,we will use pe film for packing or pack it according to customers special request.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
1. Q: Are you a manufacturer or trading company?
A: We are the manufacturer. We have our own plant, workers and technology research development department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory address is located in beautiful Qingdao, West Coast Economic Zone. The nearest airport is Qingdao Liuting International Airport. Kindly send flight information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machines?
A: The main products are conveyor belt vulcanizing joint machine, mine explosion-proof conveyor belt vulcanizing machine, conveyor belt repair machine, conveyor belt peeling machine and other relevant equipment.
4. Q: How does your factory do regarding quality control?
A: Quality is priority No. 1 and we have our own quality control department. We will make a strict inspectin before the machines leave our factory.
5 .Q: Are the technical parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machines according to the client's requirement.
Technical Parameters (Reference)
