Product Details:

Place of Origin: Shandong, China (Mainland)
Brand Name: ANTAI
Certification: ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: negotiable
Packaging Details: packing in pallet
Supply Ability: 1000 Set/Sets per Month
Contact Now
Detailed Product Description
Condition: New Type: Vulcanizer
Voltage: 380V Power(W): 9.94kw
Dimension(L*W*H): 1680mmx730mmx630mm Weight: 506kg
Warranty: 1 Year After-sales Service Provided: Free Spare Parts, Engineers Available To Service Machinery Overseas
Material: High-strength Aluminium Alloy Pressure Fluid: Oil Or Water
Working Pressure: 0-2.0Mpa Cross Beam Profiles: Hydraulic Pressure
Vulcanizing Temperature: 145℃ Pump: Electric And Hand
Packing: Pallet Cooling System: Water
Color: Original Port: QINGDAO,CHINA
High Light:

almex conveyor belt vulcanizer

,

rubber vulcanizing press



conveyor belt vulcanizing press in hot splicing









TECHNICAL PARAMETERS



  • high level of safety by passing traction bolts through the cross beam profile
  • conventional, robust heating plates combined with hydraulic pressure systems allow splicing even on partially worn belts
  • heating plate with air or water cooling
  • exact temperature regulation via an electronic control box
  • easier and faster pressure buildup by changing piston hand pump or motor pump unit

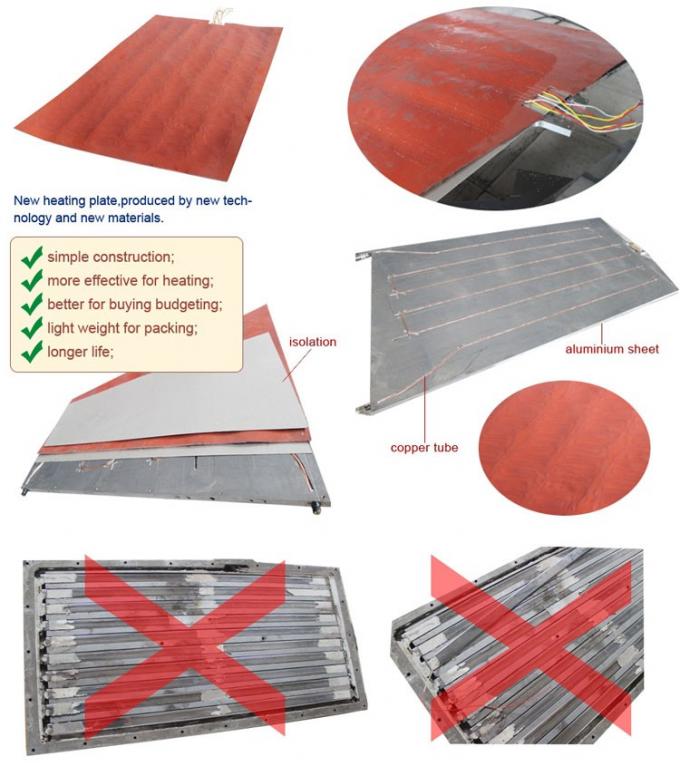

Heating plates

  • heating plates of frame-type construction, made of a highquality corrosion-resistant aluminium alloy
  • shape: rhombic 16° 42’; 22°, rectangular 90°
  • optionally available with air and/or water cooling
  • robust, flush fitting electrical connections guarantee safe operation
  • optimum pressure and temperature distribution
  • minimum temperature tolerance over the entire heating plate

Cross beams with hydraulic pressure system



  • special profi les made of high-alloy aluminum
  • maximum tensile and bending strength with minimum weight
  • built-in protection against hose breakage, the cross beam pressure being maintained in the event of a hose breakage or a sudden pressure drop
  • compact high-pressure hydraulic light metal cylinders for even surface pressure
  • high quality thermal insulation made of u-shaped fibre glassreinforced polyester in the upper cross beam
  • the surface area of the lower cross beam is covered with a wear-resistant insulating covering made of the same material

Pumps

  • reciprocating piston hand pump or motor-driven pump
  • distributor
  • high-pressure hoses
  • hydraulic oil

Hot Splicing Conveyor Belt Press 380V Voltage 9.94kw Power 1680mm X 730mm X 630mm

Hot Splicing Conveyor Belt Press 380V Voltage 9.94kw Power 1680mm X 730mm X 630mm



Reciprocation piston hand pump

  • pressure limited to 450 bar
  • oil fi lling 8 liter (usable oil volume = 6,8 liter)
  • automatic switchover from low-pressure operation to high-pressure
  • pressure gauge for pressure control

Motor-driven pump unit

  • pressure limited to 450 bar
  • supplied complete with tubular protective frame, pressure, hose coupling and valves
  • 400 V, 50 Hz *
  • capacity 1,1 kW
  • fi lling volume hydraulic oil: 17 liter or 35 liter

Hose distributor



  • matches the number of cross beams



Hot Splicing Conveyor Belt Press 380V Voltage 9.94kw Power 1680mm X 730mm X 630mm

When order, pls supply below information, our engineer will make a solution for you.

  • Max belt width
  • Working Voltage
  • Pressure requirements
  • Degree of heating platen (standard will be 20 degree)

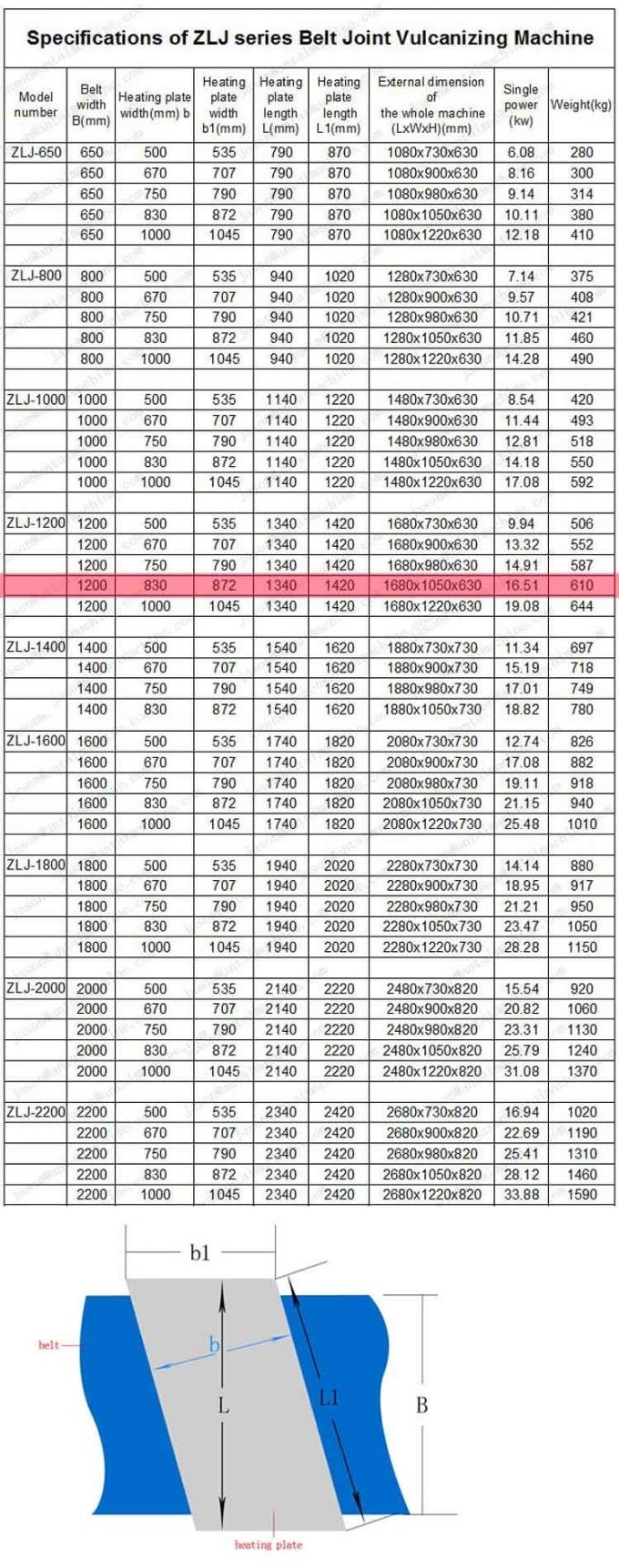

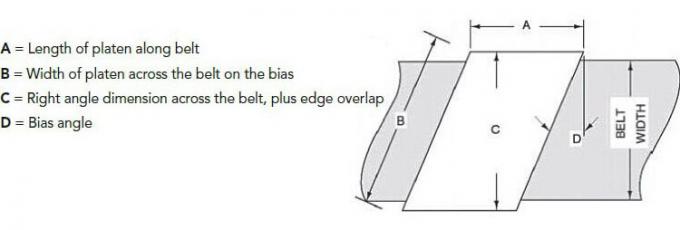

Heating Platen Dimension

Hot Splicing Conveyor Belt Press 380V Voltage 9.94kw Power 1680mm X 730mm X 630mm

Hot Splicing Conveyor Belt Press 380V Voltage 9.94kw Power 1680mm X 730mm X 630mm

Hot Splicing Conveyor Belt Press 380V Voltage 9.94kw Power 1680mm X 730mm X 630mm



Hot Splicing Conveyor Belt Press 380V Voltage 9.94kw Power 1680mm X 730mm X 630mmHot Splicing Conveyor Belt Press 380V Voltage 9.94kw Power 1680mm X 730mm X 630mm
